The Powerhub energy storage system is easy to use, provides reliable energy, and is perfect for peakshaving, construction sites, events, or any place where clean, emission free power is needed.
The Powerhub uses advanced battery technology to provide reliable, on-demand energy wherever you need it, reducing the need for diesel generators or other polluting power sources. The system is easy to set up, user friendly, powerful, and eco-friendly by contributing to a more sustainable future.
Powerhub model comparison
Side by side comparison of all technical specifications for models 20 Flatrack, 10, 5 and Module.
5FT | 10FT | 20FT | |
---|---|---|---|
Technical specifications | |||
Capacity | 145 up to 290 kWh | 435 up to 1.160 kWh | 580 up to 2.320 kWh |
Dimensions (cm) | L:240 W:160 H:259 | L:299 W:244 H:259 | L:642 W:250 H:259 |
Operating temp (°C) | -20°C - +50°C | -20°C - +50°C | -20°C - +50°C |
Charging capacity | 100 kVA | 100 kVA , 300 kVA | 300 kVA or 600 kVA |
Discharging capacity | 100 kVA | 100 kVA , 300 kVA | 300 kVA or 600 kVA |
HMI | 100 kVA | 100 kVA , 300 kVA | 300 kVA or 600 kVA |
Fast charging | - | Optional | Optional |
Integrated DC charger | - | 90 kW, 180 kW, 360 kW | 90 kW, 180 kW, 360 kW |
CCS2 socket | 22 kW/44 kW AC - 250 A DC | 22 kW/44 kW AC - 250 A DC | 22 kW/44 kW AC - 250 A DC |
Cell technology | LFP | LFP | LFP |
Water/dustproof housing | IP56 | IP56 | IP56 |
View product | View product | View product |
Powerhub examples
Want to see more? Go to our user stories
The Powerhub battery system is distinctive in terms of technology, perfomance, safety and energy density. Take advantage of the possibilities of the high-tech batery system, whether it concerns on/off grid applications, energy storage or super-fast charging of vehicles or equipment. The DENS Powerhub offers distinctiveness in terms of technology and organization.
Maximum flexibility
Flexibility is essential on a zero-emission construction site. The Powerhub consists of an inverter box to which several battery boxes can be connected up to 2.3MWh. From temporary power supply, peak shaving and/ or boosting, grid balancing to buffering; the possibilities are limitless!
Smart
The recessed connections maximize safety, quality and ease of use. The solid construction can withstand use in all weather conditions. The DENS Powerhub has an IP value 56 and is therefore a reliable energy source.
Format

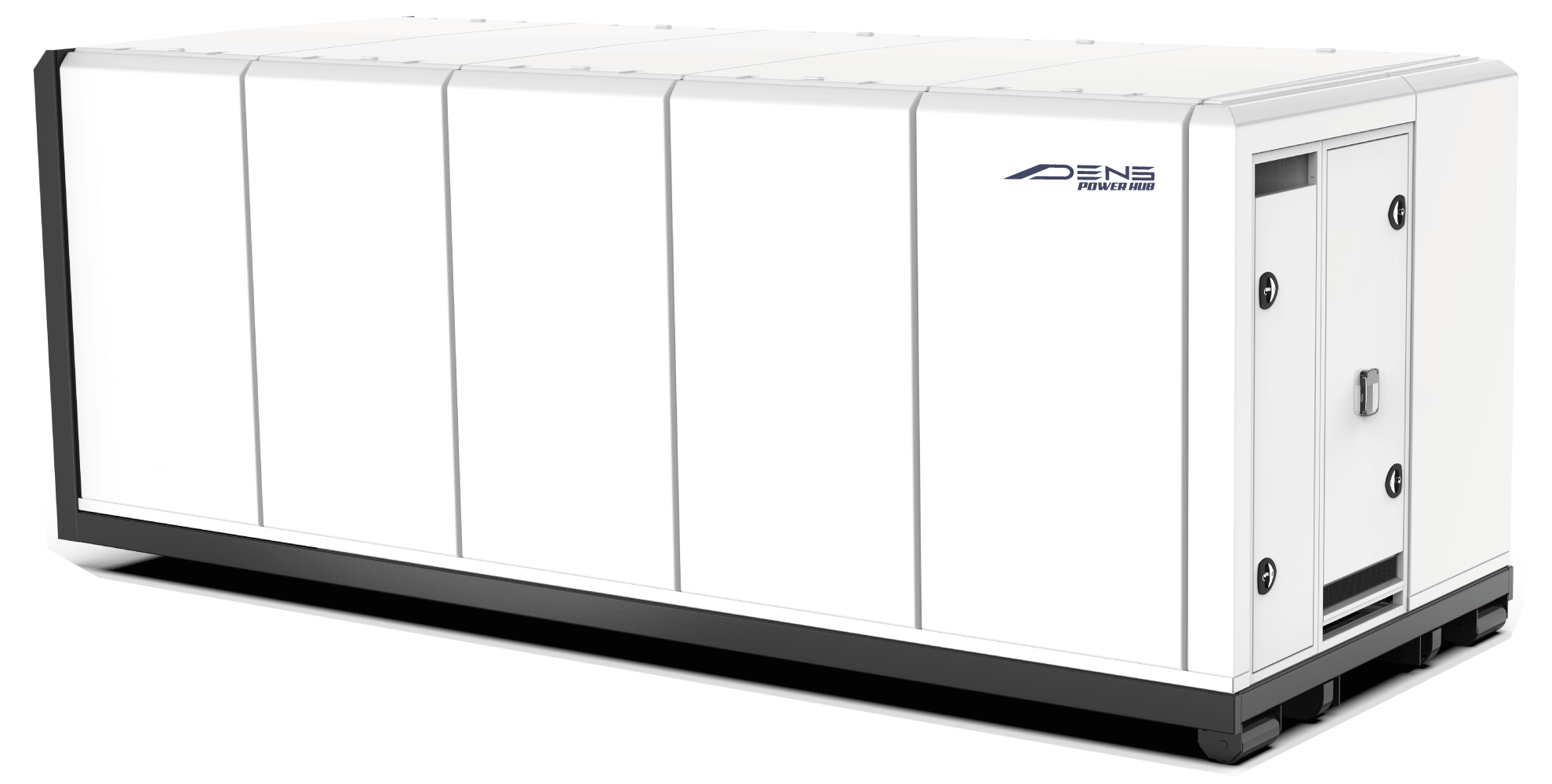

The custom-made housing with attention to optimal dimensions, namely Euro pallet size, ensures optimum convenience. Movement, storage and placement in a container is therefore simple and well thought-out. From 290kWh in a 5ft up to 1160kWh in a 10ft container, even up to 2320kWh on a 20ft flatrack system.
Applications
The DENS Powerhub is the energy storage system with unlimited possibilities. Think of the combination of power supply at any desired location, peak shaving and/or boosting, grid balancing and temporary buffering for use at a later time.
In-depth information
If you are looking for more infomation about our battery technolofgy or an answer to of your battery relaterd questions?
DENS develops unparalleled performance and safe energy storage systems.
If you are looking for more information and the configurations per system check out the product page.
Downtime is not an option. We understand better than anyone that business continuity is of the highest priority. That’s why the service team at DENS is available 24/7. Additionally, DENS continuously monitors all machines remotely, allowing you to choose automatic follow-up by DENS to prevent downtime.
Inspection and maintenance work must be carried out annually. During inspection and maintenance, the machine will be shut down and unavailable for use. The work will be scheduled and communicated at least 2 weeks in advance.
