DENS Powerhub PH 20 DENS Powerhub PH 20

Battery technology in various dimensions

The increasing demand for clean energy requires the combination of different energy sources and energy users. The DENS Powerhub is able to fulfill exactly this role by cleverly combining sources such as sun, wind or Hydrozine into the most energy-efficient and cost-effective implementation.

The DENS Powerhub, which is already an integral part of every Hydrozine generator, is the first module that is now available separately as a stand-alone platform. This system distinguishes itself in that it has been developed taking into account the new PGS37 regulations that will become mandatory from 2024. The system is compartmentalized, cooled per module and equipped per module with a fire prevention system to limit damage per module. The modules can also be (dis)connected if required for other applications or housings.

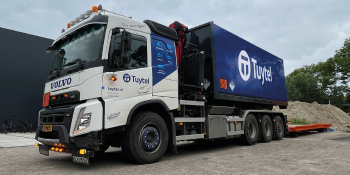

The Powerhub flatrack can be assembled up to a capacity of 2.320kWh. Equipped with a hooklift system to guarantee maximum flexibility in movement.

POWERHUB Standard 72

DENS Powerhub Battery
Dimensions

80*120*62cm
Capacity

72,5 kWh
Cell technology

LFP (Lithium Iron Phosphate)
Weight

700kg
Operating temp ( ˚C)

0˚C and +40˚C
Bidrectional interface

600-760 VDC
Housing water and dustproof

IP56

POWERHUB-10 60/290

DENS X4 HMI, White
Capacity

290kWh
Dimensions LWH

299*244*259
Weight

6.000kg
Operating temp(°C)

0°C - +40°C
Charging capacity

60kVA
Discharging capacity

60kVA
Fast charging

Optional
HMI

HMI 4X400AC

POWERHUB-10 300/580

DENS X4 HMI, White
Capacity

580kWh
Dimensions LWH

299*244*259
Weight

8.500kg
Operating temp(°C)

0°C - +40°C
Charging capacity

300kVA
Discharging capacity

300kVA
Fast charging

Optional
HMI

HMI 4X400AC

POWERHUB-20 300/1305

DENS Powerhub PH 20
Capacity

1.305kWh
Dimensions

600*240*180
Weight

20.000kg
Operating temp(°C)

0°C - +40°C
Charging capacity

300kVA
Discharging capacity

300kVA
Fast charging

150kW
HMI

HMI 4X400AC

POWERHUB-20 300/1595

DENS Powerhub PH 20
Capacity

1.595kWh
Dimensions

600*240*180
Weight

23.000kg
Operating temp(°C)

0°C - +40°C
Charging capacity

300kVA
Discharging capacity

300kVA
Fast charging

180kW
HMI

HMI 4X400AC

POWERHUB-20 300/2320

DENS Powerhub PH 20
Capacity

2.320kWh
Dimensions (LWH)

600*240*250
Weight

29.000kg
Operating temp(°C)

0°C - +40°C
Charging capacity

300kVA
Discharging capacity

300kVA
Fast charging

250kW

MAXIMUM FLEXIBILITY

Flexibility is essential on a zero-emission construction site. The Powerhub consists of an inverter box to which several battery boxes can be connected up to 2MWh. From temporary power supply, peak shaving and/ or boosting, grid balancing to buffering; the possibilities are limitless!

SMART

The recessed connections maximize safety, quality and ease of use. The solid construction can withstand use in all weather conditions. The DENS Powerhub has an IP value 56 and is therefore a reliable energy source.

FORMAT

The custom-made housing with attention to optimal dimensions, namely Euro pallet format, ensures optimum convenience. Relocation, storage and placement in a container is therefore simple and well thought-out.

APPLICATIONS

The DENS Powerhub is the energy storage system with unlimited possibilities. Think of the combination of power supply at any desired location, peak shaving and/or boosting, grid balancing and temporary buffering for use at a later time.
